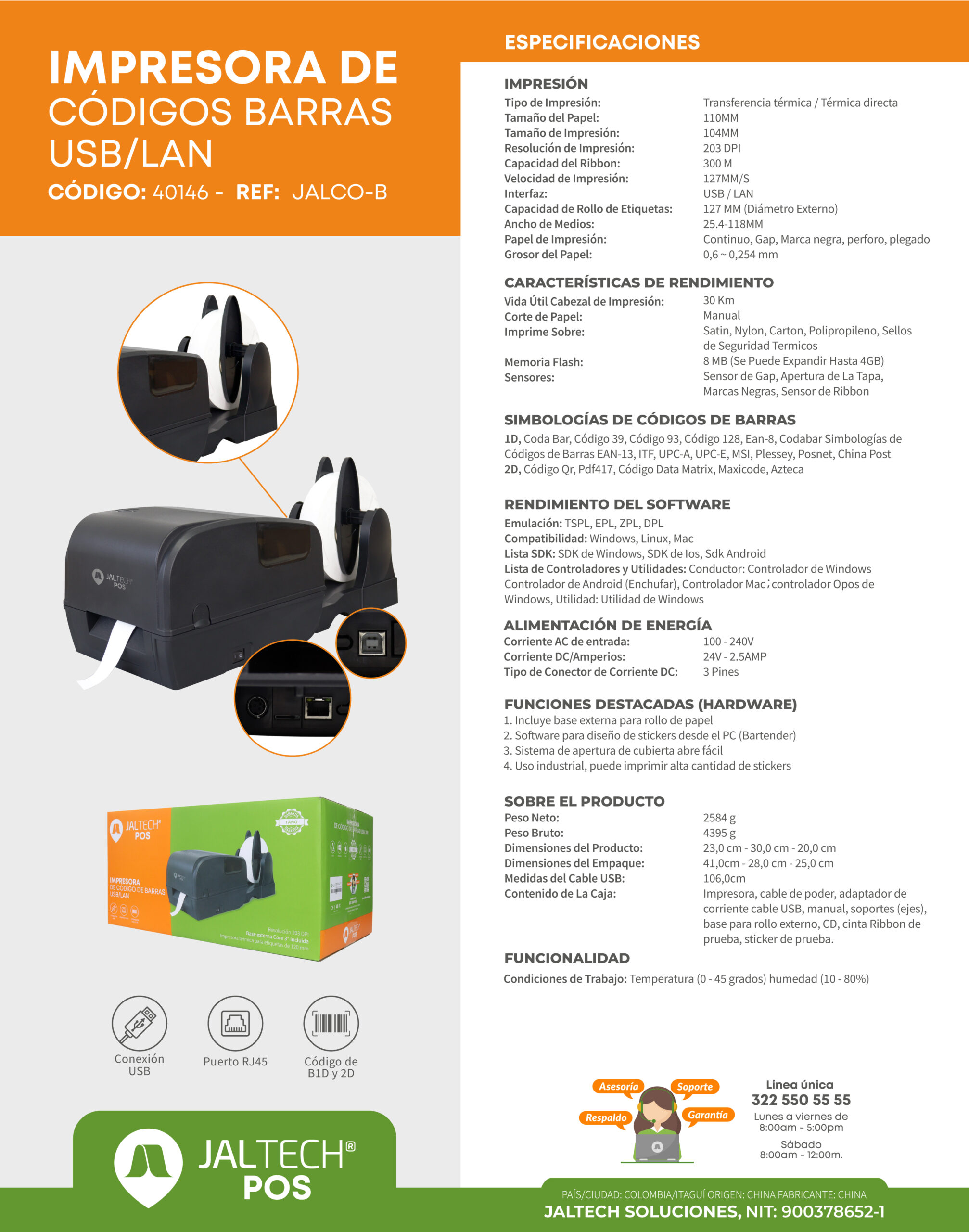

USB/LAN BARCODE PRINTER
- Printing: thermal transfer/direct thermal
- Resolution 203 DPI
- Print speed: 127 mm/s
- Max. print width: 104 mm
- Maximum print length: 1778 mm
- Media types: continuous, GAP, black mark, punched hole, folded
- Media width: 25.4–118 mm (1.0″–4.6″)
- Media thickness: 0.6–0.254 mm
- Media core diameter: 25.4–76.2 mm (core: 1″–3″)
- Label roll capacity: 127 mm (5″) OD (outer diameter)
- Maximum ribbon capacity: 300 m
- Tape width: 110 mm
- Inner diameter of the tape core: 25.4 mm
- 32-bit processor
- Emulation, TSPL, EPL, ZPL, and DPL languages
- Memory: 8 MB flash memory / 8 MB SDRAM / The flash memory is
- Can be expanded up to 4 GB
- Prints on: satin, nylon, cardboard, polypropylene, security seals, and more
- Sensors: GAP sensor, lid-open sensor, black mark sensor, ribbon sensor
- Internal fonts: 8 alphanumeric bitmap fonts; Windows fonts can be downloaded from the software
- 1D barcodes: Code 39, Code 93, UCC Code 128, Code 128 subsets a, b, c, Codabar, Interleaved 2 of 4, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN, UPC 2, digit supplement, MSI, Plessey, Posnet, China Post
- 2D barcodes: PDF-417, Maxicode, Data Matrix, QR Code, Aztec
- Dimensions: 299 x 235 x 198.3 mm (d x w x h)
- Weight: 2.55 kg
- Service life of the print head: 30 km
- Drivers for Windows, Linux, and Mac
- Windows, iOS, and Android SDKs
- Printer power input: AC 110–240 V, 1.8 A, 50–60 Hz
- Printer Output: 24V DC, 2.5A, 60W
Uses
1. Includes an external holder for a roll of paper
2. Software for designing stickers on a PC (Bartender)
3. Easy-Open Roof System
4. Industrial use; capable of printing large quantities of stickers
